Bridges are essential structures that connect land masses, making transportation possible over water bodies, valleys, or any other physical obstacles. One type of bridge that has been widely used over the years is the cantilever bridge. In this blog post, we will discuss what a cantilever bridge is, the types of cantilever bridges, and the advantages and disadvantages of this type of bridge.
What is Cantilever Structure?
A cantilever structure is a type of structure that is supported on only one end, while the other end projects outwards. This type of structure is commonly used in engineering and architecture to create overhangs, balconies, bridges, and other structures where a support beam or column cannot be placed at the other end.

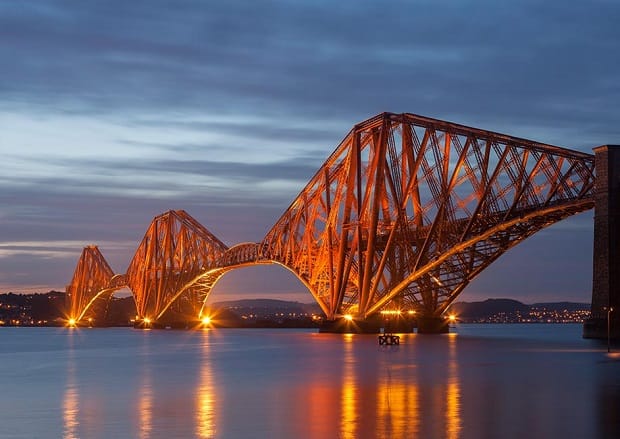

What is a Cantilever Bridge?π
A cantilever bridge is a type of bridge that uses cantilevers, which are structures that project horizontally into space, to support the weight of the bridge deck. The cantilevers are anchored on both sides of the bridge and extend outwards until they meet in the middle. The point where the cantilevers meet is called the central span, which is usually supported by a pier or a tower.
Structure of a Cantilever Bridge
A cantilever bridge consists of the following main components:
- Cantilever Arms β These are the horizontal structures that extend outward from a fixed support (pier or abutment).
- Anchor Arms β The part of the bridge that is firmly fixed to the ground or pier to balance the forces.
- Suspended Span β A section of the bridge that connects the two cantilever arms, providing additional length and support.
- Piers (Supports) β Vertical structures that bear the load of the cantilever arms and distribute it to the foundation.
- Deck β The roadway or railway track where vehicles and pedestrians move.
How Does a Cantilever Bridge Work?
The design of a cantilever bridge is based on the principle of a lever. Each cantilever arm is supported at one end and extends outward, carrying loads through tension and compression forces. The upper part of the cantilever arm is in tension, while the lower part is in compression. This helps the bridge to remain stable without needing intermediate supports.
Types of Cantilever Bridgesπ
There are two main types of cantilever bridges: the simple cantilever bridge and the continuous cantilever bridge.
1.Balanced / Simple Cantilever Bridge
The simple cantilever bridge is the most basic type of cantilever bridge. It consists of two cantilever arms extending from opposite sides of a central span. The arms are supported by piers or towers, and the deck is suspended between them. The central span is usually shorter than the cantilever arms, and the weight of the deck is evenly distributed between the cantilevers.
2.Continuous Cantilever Bridge
The continuous cantilever bridge consists of several cantilever arms, which are connected to form a continuous structure. The central span is usually longer than the cantilever arms, and the weight of the deck is distributed among the cantilevers. The continuous cantilever bridge is more complex than the simple cantilever bridge, but it can span longer distances.
Advantages of Cantilever Bridges
- Longer Spans β Cantilever bridges can span long distances without needing support in the middle, making them ideal for rivers and deep valleys.
- No Need for Temporary Supports β Since cantilever arms are built outward from piers, there is no need for temporary scaffolding or support structures during construction.
- Suitable for Heavy Loads β These bridges can support heavy traffic loads, making them ideal for railways and highways.
- Minimal Disruption β They can be constructed without disturbing water bodies, roads, or railways beneath them.
- Flexible Design β Cantilever bridges can be designed in different shapes and materials, depending on site conditions and load requirements.
Disadvantages of Cantilever Bridges
- High Construction Cost β The materials and structural components required for a cantilever bridge make it expensive compared to other bridge types.
- Complex Engineering β Designing and constructing cantilever bridges requires advanced engineering techniques and skilled labour.
- Requires Strong Foundations β The supporting piers must be strong enough to bear the entire load of the cantilever arms, increasing foundation costs.
- Limited Length β Although they can span long distances, cantilever bridges are not as efficient as suspension bridges for extremely long spans.
Applications of Cantilever Bridges
Cantilever bridges are widely used in different areas due to their strength, stability, and long span capabilities. Some common applications include:
- Railway Bridges β Used for crossing rivers and valleys without needing central supports.
- Highway Bridges β Commonly used in cities and overpasses where intermediate supports are not possible.
- Bridges Over Water Bodies β Ideal for locations where constructing piers in water is challenging.
- Temporary Military Bridges β Used for rapid deployment in war zones or disaster-affected areas.
Famous Cantilever Bridges in India
- Howrah Bridge (Kolkata) β One of the most iconic bridges in India, spanning the Hooghly River.
- Pamban Bridge (Tamil Nadu) β Connects the Indian mainland with Rameswaram Island.
- Ganga Rail Bridge (Patna) β A cantilever railway bridge over the Ganges River.
Indian Standards for Cantilever Bridges
In India, the design and construction of cantilever bridges follow guidelines from the Indian Roads Congress (IRC) and the Bureau of Indian Standards (BIS). Some important codes include:
- IRC:6-2017 β General specifications and code of practice for road bridges.
- IRC:112-2020 β Code of practice for concrete bridges.
- IS 456:2000 β Code of practice for reinforced concrete structures.
- IS 3370 β Code for concrete structures with liquid storage, which helps in bridge foundation design.
Download ourΒ IS code AppΒ for all kinds of Is codes in Civil engineering.
Conclusionπ―
Cantilever bridges play a crucial role in modern infrastructure, offering durability, strength, and adaptability for various terrains and traffic conditions. While they require advanced engineering and strong materials, their ability to span long distances without central supports makes them highly valuable in bridge construction.
