Development Length in Construction

Posted on 04/08/202330/01/2025 by Ritesh Kumar

In the field of construction and civil engineering, the structural integrity and safety of a building are paramount. One critical aspect that ensures the bonding and transfer of forces between reinforcing bars and concrete is the development length. In this blog, we will delve into what development length is, its importance in construction, and how it is calculated to guarantee the longevity and stability of structures.

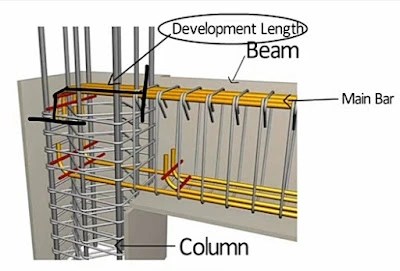

What is Development Length?

Development length, also known as anchorage length of embedment length, refers to the minimum length of reinforcement required to develop its full strength and transfer stress efficiently between the concrete and the steel reinforcement bars. It is the distance that extends beyond the point where the reinforcement bars are bent or curved and into the concrete member.

Calculation of Development Length:

development length formula

The formula to calculate the development length (Ld) is given as follows:

Ld = (𝛟 * σs) / (4 * 𝜏bd)

Where:

Ld = Development length (in mm)

𝛟= Nominal diameter of the bar (in mm)

σ = Stress in the bar at the section considered during the design load (in N/mm² or MPa)

𝜏bd= Design bond stress between concrete and steel (in N/mm² or MPa)

Importance of Development Length:

The proper calculation and implementation of development length are crucial for the following reasons:

  • Structural Integrity: In reinforced concrete structures, the concrete and steel reinforcement work together as a composite material. A sufficient development length ensures a strong bond between the two materials, preventing premature failure or cracking due to insufficient reinforcement anchorage.
  • Load Transfer: Buildings are subjected to various loads, including dead loads (permanent loads like the weight of the structure) and live loads (temporary loads like occupants and furniture). Proper development length ensures that these loads are effectively transferred from the concrete to the reinforcing bars, ensuring stability and safety.
  • Ductility and Seismic Performance: Adequate development length enhances the ductility of the structure, which is its ability to undergo large deformations without collapsing. In regions prone to earthquakes, ductility is crucial for absorbing seismic forces, reducing damage, and ensuring occupant safety.
  • Code Compliance: Most building codes and design standards specify the minimum development length requirements based on factors like bar diameter, concrete strength, and environmental conditions. Adhering to these standards is necessary to ensure code compliance and obtain construction permits.

Factors Affecting Development Length:

Several factors influence the required development length, such as:

  • Concrete Strength: Higher concrete strength typically requires shorter development lengths.
  • Bar Diameter: Thicker reinforcement bars may need longer development lengths to achieve adequate bond strength.
  • Cover Thickness: The distance between the outer surface of the concrete and the reinforcement affects development length. Thicker concrete covers usually demand longer development lengths.
  • Exposure Conditions: Harsh environmental conditions, such as marine environments or acidic soils, may necessitate longer development lengths to prevent corrosion.
  • Load Conditions: The type and magnitude of loads on the structure impact the required development length

IS Code For Development Length

IS 456:2000 – Code of Practice for Plain and Reinforced Concrete

  • Clause 26.2.1 of IS 456:2000 specifies the formula and provisions for calculating the development length (Ld) of reinforcement bars to ensure proper anchorage and bond strength.
  • The development length (Ld) is given by the formula:

    Ld = (𝛟 * σs) / (4 * 𝜏bd)

    where:

    • Ld​ = Development length
    • ϕ = Diameter of the reinforcing bar
    • τbd = Design bond stress (varies based on concrete grade)
    • σ = Stress in the bar at the section considered during the design load (in N/mm² or MPa)

Download our IS code App for all kinds of Is codes in Civil engineering.

Conclusion🎯

Development length plays a pivotal role in ensuring the structural integrity, safety, and durability of reinforced concrete structures. Properly calculated and executed development length is a testament to sound engineering practices and adherence to building codes and standards.Engineers and construction professionals must prioritise the correct determination and implementation of development length to create structures that stand the test of time and provide a safe habitat for generations to come.
