Introduction
When constructing a building, it is important to ensure that it is structurally sound and stable. One of the ways to achieve this is by using plinth beams and tie beams. Plinth beams and tie beams are both horizontal structural members used in construction. They differ in their locations, purposes, connections, loads, sizes, and reinforcement. In this blog, we will discuss the differences between plinth beams and tie beams.

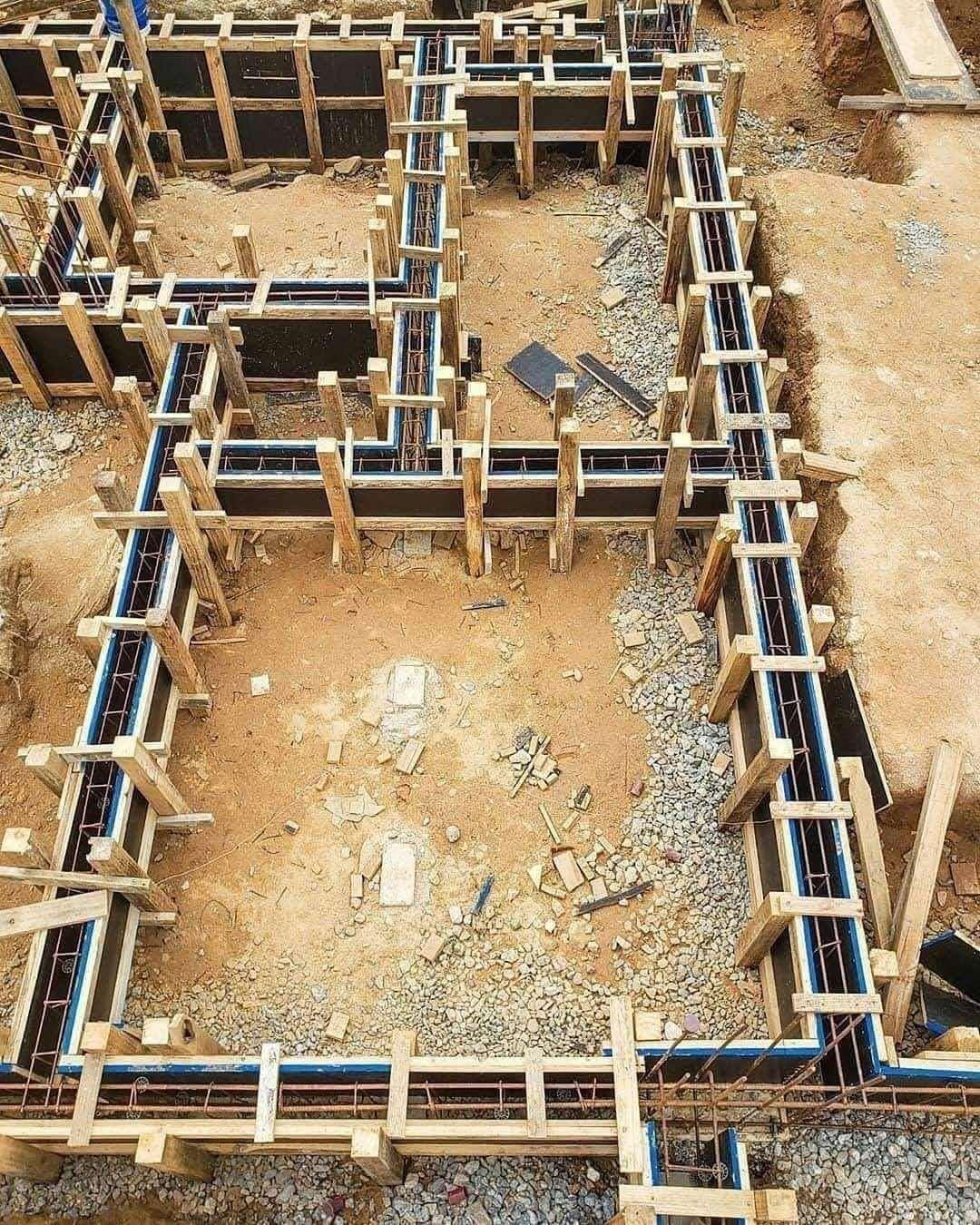

Plinth Beam
A plinth beam is a reinforced concrete beam that is located at the plinth level, just above the foundation. The primary purpose of a plinth beam is to provide a level base for the walls of the building to rest upon and prevent differential settlement. The differential settlement occurs due to the uneven distribution of the weight of the building. The plinth beam is connected to the foundation, and it bears the load of the walls of the building. The plinth beam is usually larger than the size of the wall it supports and is reinforced with steel bars.
Purpose of Plinth Beam:
Some of the main functions of a plinth beam are:
- Supporting the walls: Plinth beams provide a strong base to the walls at the ground level, which helps to distribute the load of the superstructure evenly. This prevents the walls from sagging or cracking, and helps to maintain the structural integrity of the building.
- Connecting the foundation and the superstructure: Plinth beams act as a connecting element between the foundation and the superstructure, which helps to transfer the load of the building to the foundation evenly. This prevents the building from settling or tilting over time.
- Resisting lateral forces: Plinth beams are designed to resist lateral forces such as earthquakes and wind, which can cause the building to sway or tilt. They provide additional support to the building in the event of an earthquake or high winds, which helps to prevent structural damage.
- Barrier against moisture: Plinth beams also serve as a barrier against moisture and dampness from the ground. They prevent the walls from coming in direct contact with the soil, which can cause the walls to absorb moisture and weaken over time.
Tie Beam
A tie beam is a reinforced concrete beam that is located at the roof level or just below the roof level. The primary purpose of a tie beam is to provide lateral stability to the columns and prevent them from buckling. The tie beam is connected to the columns, and it bears the lateral load of the columns. The lateral load is the horizontal force exerted by the wind or earthquake on the building. The tie beam is usually smaller than the size of the column it supports and is reinforced with steel bars.
Purpose of Tie beam:
Some of the main functions of a tie beam are:
- Resisting lateral forces: Tie beams are designed to resist lateral forces such as wind and earthquakes. They provide additional support to the walls and prevent them from spreading or collapsing under the influence of these forces.
- Connecting the walls: Tie beams act as a connecting element between the walls of a building. They help to distribute the load of the superstructure evenly, which helps to prevent the walls from sagging or cracking over time.
- Stabilising the building: Tie beams provide additional stability to the building by transferring the load of the superstructure to the walls evenly. This helps to prevent the building from settling or tilting over time.
- Providing support for the roof: Tie beams can also be used to support the roof of a building. They can span across the width of the building and provide a strong base for the roof trusses or purlins.
Differences between Plinth Beam and Tie Beam
| Parameters | Plinth Beam | Tie Beam |
|---|---|---|
| Location | At plinth level, above foundation | At roof level or below roof level |
| Purpose | Provides level base for walls to rest upon, prevents differential settlement | Provides lateral stability to columns, prevents buckling. |
| Connection | Connected to foundation | Connected to columns |
| Load | Bears load of walls | Bears lateral load of columns |
| Reinforcement | Reinforced with steel bars | Reinforced with steel bars |
| Height | Typically shorter | Typically taller |
| Span | Spans entire length of building | Spans between columns |
| Size | Usually larger than wall size | Usually smaller than column size |
| Shape | Generally rectangular or square | Can be rectangular, circular, or trapezoidal |
Conclusion🎯
In conclusion, plinth beams and tie beams are both important components in the construction of a building. While plinth beams are located at the ground level and help to distribute the load of the building evenly, tie beams are located at higher levels and help to provide lateral stability to the structure. Plinth beams and tie beams have different functions and are designed differently to meet the specific needs of the building. It is important to understand the differences between the two types of beams in order to ensure the structural integrity of the building.
