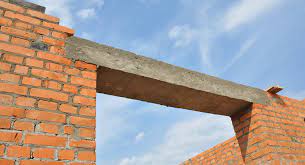

RCC (Reinforced Cement Concrete) lintels are crucial structural elements in buildings, typically placed over doors, windows, and other openings. Their primary function is to transfer the load from above the opening to the supporting walls or columns on either side. Proper design and adherence to standards ensure their structural stability and longevity. This blog delves into the key steps, formulas, and relevant IS codes for designing RCC lintels.
What Are RCC Lintels?
RCC lintels are horizontal concrete beams reinforced with steel to handle tensile stresses. Unlike traditional brick or stone lintels, RCC lintels are highly versatile, durable, and capable of withstanding heavier loads, making them ideal for modern construction.
Key Design Considerations for RCC Lintels
1. Load Assessment
The first step in designing an RCC lintel is to calculate the total load it will bear. This includes:
- Dead Load: Self-weight of the lintel and the wall above.
- Live Load: Variable loads such as furniture or equipment.
- Superimposed Load: Any additional loads such as roof or floor loads.
2. Dimensions of the Lintel
The width of the lintel is typically equal to the wall thickness. The depth (or height) of the lintel is determined based on the span length and load. A general thumb rule is:
where:
- d = depth of the lintel
- L = span length
However, a more precise calculation involves structural analysis.
3. Designing Reinforcement
Steel reinforcement is essential for handling tensile stresses. The area of steel required is calculated using the formula:
where:
- As = area of steel reinforcement
- M= bending moment
- σst = allowable tensile stress in steel
- j = lever arm factor (typically 0.87)
- d= effective depth of the lintel
Example Calculation
4. Shear Design
The lintel must also be checked for shear. Shear stress is calculated as:
where:
- τv = shear stress
- V = shear force
- b = breadth of the lintel
- d = depth
If the shear stress exceeds the permissible limit, shear reinforcement (stirrups) is added.
IS Codes Related
The design of RCC lintels should conform to the following Indian Standards (IS codes):
- IS 456:2000: General guidelines for RCC design.
- IS 875 (Part 1 to 5): Guidelines for loads (dead, live, wind, etc.).
- SP 16: Design aids for RCC.
Download our IS code App for all kinds of Is codes in Civil engineering.
Construction Practices for RCC Lintels
- Formwork: Ensure formwork is rigid and leak-proof to avoid loss of cement slurry.
- Concrete Mix: Use a mix ratio as per design requirements, commonly M20 (1:1.5:3) or M25 for lintels.
- Curing: Proper curing for at least 7–14 days to achieve desired strength.
- Placement of Reinforcement: Maintain adequate cover (20 mm for lintels) to protect steel from corrosion.
Advantages of RCC Lintels
- High strength and durability.
- Can span larger openings compared to traditional materials.
- Fire-resistant and versatile.
Conclusion🎯
Designing RCC lintels requires careful consideration of loads, dimensions, and reinforcement. By adhering to IS codes and ensuring proper construction practices, RCC lintels can provide robust structural support for various building applications. Whether you’re a civil engineer or a construction enthusiast, understanding these principles ensures safer and more efficient designs.
Frequently Asked Questions
- What is the standard mix for RCC lintels?
- M20 or M25 concrete mix is commonly used.
- What are common IS codes for RCC lintels?
- IS 456:2000 and IS 875 (Part 1 to 5) are key references.
- How do you calculate lintel depth?
- Depth can be estimated as L/10 to L/12 or determined through structural calculations.
