Self-Compacting Concrete – The Modern Construction Solution

Posted on 19/07/202312/04/2025 by Ritesh Kumar

In the world of concrete, there’s a special type called self-compacting concrete (SCC). It’s different from regular concrete because it can flow on its own without needing vibrations to settle. This article explores self-compacting concrete, including what it’s made of, its properties, advantages, disadvantages, and where it’s used in construction.

What is Self-Compacting Concrete?

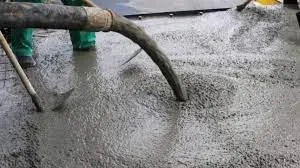

Self-compacting concrete, also known as self-consolidating concrete, is a popular type of concrete that flows easily when it’s fresh. It can compact itself without any issues of separation, making it useful in construction projects where vibrating the concrete is not possible.

Composition of Self Compacting Concrete

Self-compacting concrete is made up of several key ingredients:

1️. Cement: It uses regular Portland cement, usually grades 43 or 53.

2️.Aggregates: The size of the aggregates used in self-compacting concrete is limited to 20mm, or smaller in densely reinforced areas. They should have a round or cubical shape.

3️.Water: The water used in self-compacting concrete is the same as that used in other concrete types.

4️.Mineral Compounds: Various mineral additives like GGBS, fly ash, silica fumes, and stone powder can be added to improve the flowability and durability of self-compacting concrete.

5️.Chemical Compounds: Special chemicals like superplasticizers, air-entraining agents, and retarders are used to enhance workability, freeze-thaw resistance, and setting time.

Properties of Self-Compacting Concrete

  • Self-compacting concrete (SCC) and traditional vibrated concrete have comparable qualities in terms of compressive strength.
  • SCC can be used in most applications where traditional vibrated concrete is employed.
  • SCC has a slightly higher strength than vibrated concrete with the same water-cement ratio due to improved interface bonding between aggregate and paste without vibrations.
  • The main difference between SCC and conventional concrete lies in their performance during the fresh state.
  • Workability is crucial in determining the successful placement of SCC.
  • SCC has the ability to flow under its weight without vibration.
  • SCC can flow uniformly even through densely reinforced areas without forming honeycombs.
  • SCC is resistant to segregation as it flows, thanks to its specific admixtures and mineral fillers.

Advantages of Self-Compacting Concrete

Using self-compacting concrete offers many benefits, such as:

  • Reduced permeability, improving the durability of structures.
  • More design flexibility due to its high flowability.
  • Faster construction compared to traditional methods.
  • Less noise from vibrations during construction.
  • Easier placement, leading to cost savings.
  • Improved construction quality and reliability.
  • Enables creative architectural designs.
  • Smoother and more attractive finishes.
  • Reduced need for labour-intensive concrete vibration.
  • Minimised air gaps in reinforced sections.
  • Efficient pumping over long distances and heights.

Disadvantages of Self-Compacting Concrete

However, self-compacting concrete also has a few limitations:

  • The selection of materials requires careful consideration.
  • Creating the right mix design may involve multiple trials and tests.
  • It can exert additional pressure on formwork design due to its high flow velocity.
  • There’s no universally recognized test standard for self-compacting concrete, making quality control challenging.

Applications of Self-Compacting Concrete

Self-compacting concrete finds applications in various construction projects, including:

  • Structures with complex reinforcement.
  • Repair, restoration, and rejuvenation work.
  • Sturdy and long-lasting retaining walls.
  • Foundations like rafts, piles, and drilled shafts.
  • Construction of columns and other elements.

Special Considerations for Self-Compacting Concrete

To ensure successful use of self-compacting concrete, there are a few important considerations:

  • Producing self-compacting concrete requires expertise.
  • Formwork should be designed to handle the pressure from fluid concrete.
  • Avoid using mixers at full capacity to prevent overflow.
  • Pouring and lifting self-compacting concrete into taller elements might be needed.
  • Manufacturing self-compacting concrete requires precision and care.

Main IS Codes Related to SCC:

1. IS 10262: 2019

  • Title: Concrete Mix Proportioning – Guidelines

  • Relevance: The latest revision includes provisions for SCC mix design. It provides guidelines for selecting ingredients, mix proportions, and ensuring performance-based properties like flowability and stability.

2. IS 456: 2000

  • Title: Plain and Reinforced Concrete – Code of Practice

  • Relevance: Although not specific to SCC, it lays down general requirements for concrete structures, which apply to SCC as well, like strength, durability, cover, and curing.

3. IS 383: 2016

  • Title: Specification for Coarse and Fine Aggregates for Concrete

  • Relevance: SCC requires specific aggregate grading to maintain flowability. This code helps in selecting suitable fine and coarse aggregates.

4. IS 9103: 1999 (Reaffirmed 2013)

  • Title: Admixtures for Concrete – Specification

  • Relevance: SCC heavily relies on chemical admixtures (like superplasticizers and viscosity modifying agents). This code deals with their performance and usage.

📘 Additional Guidelines & References:

IRC: SP: 62-2014

  • Title: Guidelines for the Design and Construction of Cement Concrete Pavements for Low Volume Roads

  • Relevance: Contains a detailed section on SCC for road applications.

EFNARC Guidelines (Europe)

  • Title: Specification & Guidelines for Self-Compacting Concrete (2002)

  • Relevance: While not an IS code, this is a globally accepted standard for testing and performance criteria of SCC — widely referred to in India too.

🧪Common Tests for SCC (as per EFNARC and practice in India):

  • Slump Flow Test (for flowability)

  • V-Funnel Test (for viscosity)

  • L-Box Test (for passing ability)

  • J-Ring Test (for blocking assessment)

Conclusion🎯

Designing and producing self-compacting concrete requires careful attention to the right mix proportions. Proper testing and quality control are crucial to achieve consistent performance and meet project requirements. With its excellent workability, durability, structural integrity, and aesthetic appeal, self-compacting concrete has become a preferred choice in construction. Embracing this innovative solution opens doors to more efficient and advanced construction practices.
