In civil engineering and construction, gabions play a vital role in soil protection, erosion control, and landscaping. Though they may look like simple wire boxes filled with stones, gabions are much more than that. They are strong, cost-effective, eco-friendly, and long-lasting.

This blog will help you understand what a gabion is, its types, components, uses, benefits, and how it is installed.

What is a Gabion?

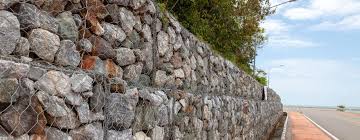

A gabion is a wire container or cage filled with stones, rocks, concrete pieces, or sometimes sand and soil. These boxes are stacked and tied together to form a wall or barrier that resists erosion and supports soil structures.

Gabions are usually made using galvanised steel mesh (coated with zinc or PVC to prevent rust). They allow water to pass through while holding back soil and debris. This makes them very useful for riverbanks, retaining walls, and road protection.

Components of a Gabion

A typical gabion includes the following parts:

• Wire Mesh: The mesh forms the cage or box. It is usually hexagonal or square and made from galvanised steel.
• Lacing Wire or Fasteners: These connect and secure gabion panels together.
• Filling Material: Mostly natural stones or rocks are used. They must be strong, non-degradable, and appropriately sized.
• Diaphragms: Internal partitions used to divide large gabions into smaller sections for strength.

Types of Gabion Structures

Depending on the use and shape, gabions can be of different types:

1. Gabion Basket
   Rectangular wire mesh boxes filled with stones. Commonly used for retaining walls and slope protection.
2. Gabion Mattress (Reno Mattress)
   These are wider and flatter gabions used mainly for riverbed or canal lining and erosion control.
3. Gabion Sack
   Cylindrical gabions used for emergency works such as riverbank protection during floods.
4. Decorative Gabions
   These are used in landscaping and garden design for fences, benches, or garden walls.

Uses of Gabion in Construction

Gabions are widely used for both functional and decorative purposes. Some common applications include:

• Retaining Walls: Support slopes and prevent landslides or erosion.
• Riverbank Protection: Prevent soil erosion caused by flowing water.
• Bridge Abutments: Support and protect bridge ends from water damage.
• Roadside Embankments: Stabilise slopes along highways or railways.
• Noise Barriers: Gabions filled with absorbent material can reduce traffic or industrial noise.
• Garden Landscaping: Used to build benches, planters, or fences with a rustic appearance.

Advantages of Using Gabions

• Durability: Strong against water flow, weather changes, and pressure.
• Permeability: Allows water to pass through, reducing pressure behind walls.
• Low Maintenance: Once installed, they require very little attention.
• Environment Friendly: Natural look and support vegetation growth over time.
• Flexible: Can adjust to slight ground movement without cracking like rigid walls.
• Cost-effective: Construction and material cost is comparatively low.
• Easy Installation: No need for skilled labour or heavy equipment.

Disadvantages of Gabions

• Bulky Appearance: Some may not like the rough look for residential areas.
• Stone Settlement: Over time, stones may settle, causing the wall to deform if not packed well.
• Corrosion Risk: If not properly coated, wires may corrode in harsh conditions.
• Vegetation Growth: While eco-friendly, unwanted plant growth can occur inside gaps if not managed.

Installation Process (Step-by-Step)

1. Site Preparation: Clear the area and level the ground where the gabion will be placed.
2. Assembling the Gabion: Fold and tie the wire panels into a box shape using lacing wire.
3. Positioning: Place the empty gabion on the prepared base.
4. Filling: Fill with stones carefully, keeping larger stones on visible sides for appearance.
5. Closing the Lid: Once filled, close and secure the top lid.
6. Stacking: If multiple layers are needed, stack gabions securely with overlap.

Maintenance Tips

• Inspect the wire mesh for rust or breaks annually.
• Refill stones if any settlement or gaps are noticed.
• Trim vegetation that grows inside the gabion if it’s unwanted.

Relevant IS Codes for Gabion Construction

While there is no single IS code dedicated exclusively to gabions, various related codes are referred to during their design and construction. Some of the important ones include:

• IS 16014:2012 – Gabion structures – Guidelines for design and construction
  This is the primary guideline for gabion work in India. It covers materials, construction practices, and design criteria.

• IS 280:2006 – Mild steel wire for general engineering purposes
  Used to specify wire materials used in making gabion mesh.

• IS 4826:1979 – Galvanised coatings on mild steel wire
  Covers the galvanisation requirements for corrosion protection.

• IS 2720 (Part 29):1975 – Determination of dry density of soils in-place by the core-cutter method
  Useful during ground preparation and compaction before gabion installation.

• IRC SP 116:2014 – Guidelines for Design and Execution of Gabion Structures for Road Works
  Published by the Indian Roads Congress, this is highly relevant for road-related gabion works.

Conclusion

Gabions are a simple yet effective solution in civil engineering. They offer strength, flexibility, and sustainability, making them ideal for various construction and landscaping projects. Whether you are protecting a riverbank, supporting a road embankment, or designing a garden wall, gabions are a smart choice that balances function and form.

Frequently Asked Questions (FAQs)

Q1. What is the ideal stone size for gabions?

Answer: Generally, stone sizes between 100 mm and 200 mm are ideal. They should not be so small that they fall through the mesh.

Q2. How long do gabions last?

Answer: Properly installed and maintained gabions can last 30 to 50 years or more, depending on the environment and coating used.

Q3. Can gabions be used for flood protection?

Answer: Yes. Gabions are commonly used for riverbank and flood control because they allow water to pass through while holding back soil.

Q4. Are gabions environmentally friendly?

Answer: Absolutely. They blend into the landscape, allow vegetation growth, and use natural stones, making them eco-friendly.

Q5. Do gabions require a foundation?

Answer: For small structures, a compacted gravel base is enough. For larger walls, a shallow concrete foundation may be needed.
