Precast Concrete in Construction

Posted on 07/12/2024 by CivilEngineerDK

Precast concrete has become a cornerstone of modern construction practices, offering a blend of efficiency, durability, and sustainability. Manufactured in a controlled environment and then transported to the construction site, precast concrete ensures quality, precision, and adaptability to various structural needs. From residential to commercial and industrial projects, precast concrete plays a pivotal role in transforming construction methodologies.

What Is Precast Concrete?

Precast concrete refers to concrete elements that are cast and cured in a factory or off-site facility under controlled conditions before being transported to their final location. These elements include beams, columns, slabs, walls, and other structural and decorative components.

Advantages of Precast Concrete

The adoption of precast concrete in construction projects is driven by its numerous benefits:

  1. High Quality and Durability:
    • Factory-controlled manufacturing ensures uniformity and superior quality.
    • Resistant to weathering, corrosion, and environmental stressors, increasing the lifespan of structures.
  2. Time-Saving:
    • On-site construction time is reduced as the elements are ready to install upon arrival.
  3. Cost-Effective:
    • Less labour and reduced material wastage lead to overall cost savings.
  4. Versatility:
    • Precast concrete can be customised for various designs and applications, offering flexibility to architects and engineers.
  5. Sustainability:
    • Recycled materials can be used in manufacturing.
    • Precast components can be disassembled and reused, reducing the environmental footprint.

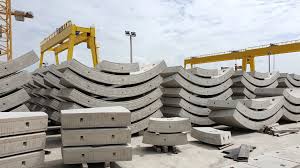

      Quality Precast Concrete ...

Constituents of Precast Concrete

Precast concrete is manufactured using high-quality materials, each playing a crucial role in ensuring its strength, durability, and performance. The primary constituents of precast concrete include:

1. Cement

Cement acts as the binding material in precast concrete. It is responsible for setting and hardening, providing the necessary strength to the finished product.

  • Commonly Used Type: Ordinary Portland Cement (OPC).
  • IS Code: IS 12269:2013 – Specification for 53 Grade OPC.

2. Aggregates

Aggregates form the bulk of precast concrete and contribute to its strength and stability. They are classified into two categories:

  • Fine Aggregates: Sand or crushed stone dust.
  • Coarse Aggregates: Gravel or crushed stones.
  • IS Code: IS 383:2016 – Specification for Coarse and Fine Aggregates from Natural Sources for Concrete.

3. Water

Water is essential for the hydration of cement, which enables the setting and hardening of concrete. It also ensures workability during casting.

  • Key Consideration: Water must be free of impurities to prevent adverse chemical reactions.
  • IS Code: IS 456:2000 – Guidelines for Water Quality in Concrete.

4. Admixtures

Admixtures are added to enhance the properties of precast concrete. These may include:

  • Superplasticisers: To improve workability.
  • Retarders: To delay setting time during long-distance transportation.
  • Accelerators: To speed up setting in cold weather.
  • IS Code: IS 9103:1999 – Specification for Admixtures for Concrete.

5. Reinforcement (if applicable)

In reinforced precast concrete elements, steel reinforcement is used to provide tensile strength and resist cracking.

  • Commonly Used Types: High-yield strength deformed (HYSD) bars or TMT bars.
  • IS Code: IS 1786:2008 – Specification for High Strength Deformed Steel Bars and Wires for Concrete Reinforcement.

6. Moulds

Moulds define the shape and dimensions of the precast concrete elements. They are made from materials like steel, wood, or fibreglass, ensuring precision and reusability.

7. Curing Agents

Curing compounds are often applied to retain moisture during the curing process, enhancing the concrete’s durability and strength.

  • IS Code: IS 456:2000 – Curing Guidelines for Concrete.

Special Additives for Precast Concrete

For specialised applications, additional materials may be included:

  1. Pigments: To add colour for architectural precast elements.
  2. Fibres: Glass or steel fibres may be added to improve toughness and reduce cracking.
  3. Waterproofing Agents: To enhance resistance to water penetration.

By carefully selecting and proportioning these constituents, precast concrete achieves its characteristic strength, durability, and versatility, making it a preferred choice for diverse construction projects.

Applications of Precast Concrete

Precast concrete is used across various sectors and for diverse purposes:

  1. Residential Buildings:
    • Prefabricated walls, floors, and stairs.
    • Reduces construction time, offering quick housing solutions.
  2. Commercial Projects:
    • Multi-storey buildings use precast beams and slabs for structural strength.
  3. Infrastructure Projects:
    • Precast concrete is widely used for bridges, tunnels, culverts, and railway sleepers.
  4. Decorative Applications:
    • Facades, cladding panels, and ornamental designs for buildings.

Types of Precast Concrete Elements

  1. Structural Elements:
    • Beams, columns, and floor slabs for framing structures.
  2. Architectural Elements:
    • Wall panels and decorative components for aesthetic purposes.
  3. Utility Elements:
    • Pipes, septic tanks, and retaining walls for infrastructure.
  4. Specialised Elements:
    • Precast bridge girders, prestressed concrete sleepers, and sound barriers.

Manufacturing Process of Precast Concrete

  1. Design and Planning:
    • Engineers and architects create moulds for the required components.
  2. Material Preparation:
    • High-quality concrete is prepared as per the required specifications.
  3. Casting:
    • The concrete mix is poured into moulds and vibrated to eliminate air bubbles.
  4. Curing:
    • Components are cured under controlled conditions for optimal strength.
  5. Quality Inspection:
    • Each piece undergoes stringent testing to ensure compliance with IS standards.
  6. Transportation and Installation:
    • Finished components are transported to the site and assembled as per the design.

Challenges in Using Precast Concrete

Despite its advantages, precast concrete has certain challenges:

  1. High Initial Investment:
    • Requires significant setup for manufacturing facilities.
  2. Transportation Limitations:
    • Large components may face logistical challenges in transit.
  3. Jointing Issues:
    • Proper alignment and sealing of joints are essential to maintain structural integrity.
  4. Skilled Labour Requirement:
    • Installation requires trained personnel to ensure accuracy.

IS Codes Related to Precast Concrete

To ensure quality and safety in precast concrete construction, adherence to Indian Standards (IS) codes is crucial. Some relevant IS codes are:

  1. IS 15916:2010 – Building Design and Erection Using Precast Concrete.
  2. IS 11447:1985 – Code of Practice for Construction with Large Panel Precast Concrete.
  3. IS 783:2021 – Code of Practice for Laying Precast Concrete Pipes.
  4. IS 456:2000 – Code of Practice for Plain and Reinforced Concrete (provides general guidelines for concrete structures, including precast).
  5. IS 875 (Part 2):1987 – Code of Practice for Design Loads (covers loads for precast structural components).

Download our IS code App for all kinds of Is codes in Civil engineering.

Future of Precast Concrete

With the growing emphasis on sustainable and rapid construction, precast concrete is poised for greater adoption. Its ability to integrate advanced materials, digital design tools, and modular construction techniques makes it an essential part of modern engineering practices.

Conclusion🎯

Precast concrete offers an efficient, durable, and environmentally friendly alternative to traditional construction methods. By adhering to IS codes such as IS 15916:2010 and IS 456:2000, construction professionals can ensure safety, quality, and longevity in their projects. Whether for residential, commercial, or infrastructure purposes, precast concrete continues to shape the future of construction, addressing the industry’s demands for speed, sustainability, and innovation.
